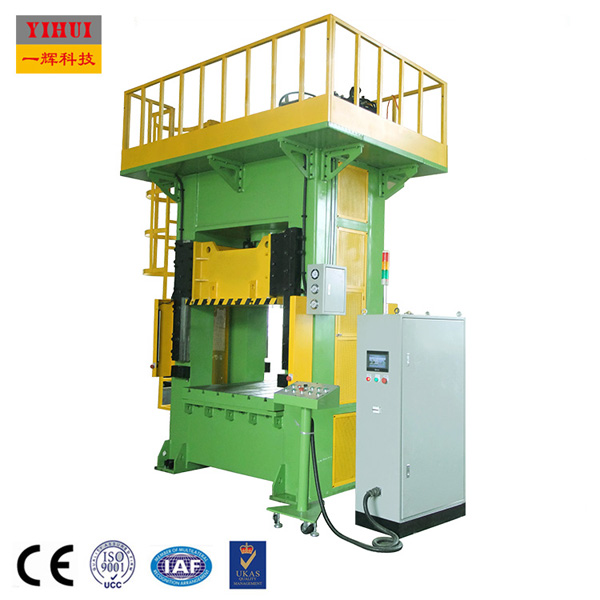

Hydraulic sheet metal forming press

Short Description:

   YIHUI slider sheet metal forming machine adopts a frame hydraulic structure and is equipped with a high-precision slider guide system. It is suitable for

precision stamping of automotive sheet metal, home appliance housings, aviation metal parts, etc. The equipment adopts a servo hydraulic system + PLC

control, with a pressure range of 200T-5000T, supports single-action/double-action mode, and meets the processing needs of different metal sheets.




  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 500 Piece/Pieces per year
  • Product Detail

    COMPANY INTRODUTION

    Our Customers

    Exhibitions and Certificates

    Product Tags

     Product name:Hydraulic sheet metal forming press

    e7d2ecab172cd1bf21a86575d9d4805

     The main technical parameters:

     Item Unit   Product Specifications
    YHL2-100TS YHL2-150TS YHL2-200TS YHL2-300TS YHL2-400TS YHL2-500TS
    Max.Working pressure Mpa 20 21 20 24 25 25
    Main cylinder force kN 1000 1500 2000 3000 4000 5000
    Max.Stroke of ram mm 450 450 500 500 500 500
    Max.Open height mm 600 600 700 800 800 900
    Speed of ram Down no load mm/s 220 200 180 170 170 170
    Pressing mm/s 20 20 10 10 8 8
    Return mm/s 190 190 170 160 150 150
    Effective area of working table RLedge) mm 1000 1000 1200 1400 1600 2000
    FB(edge) mm 800 800 1000 1200 1200 1500
    Overall dimension L.R mm 2500 2800 3280 3900 4100 4800
    F.B mm 1650 1650 2000 2500 3000 3100
    H mm 3100 3120 3900 4300 4700 5200
    Motor power kW 16.4 16.4 16.4 16.4 24.5 24.5
    Total weight kg 6500 7500 11500 18500 28000 32000
    Oil quantity(Approx) L 400 400 450 450 500 600



    Key Features
    Precision Slide Guidance – ±0.03mm repeatability, reduced deflection
    Servo Energy Saving – 30-50% lower power consumption vs. conventional presses
    Multi-Process Capability – Stamping, deep drawing, bending, coining in one machine
    Smart Control – Siemens PLC + HMI touchscreen, programmable settings
    Robust Construction – Reinforced steel frame, 20+ years lifespan
    Application:

    Automotive Manufacturing :Key Components:
    Body panels (doors, hoods, trunk lids)
    Structural parts (chassis, frame rails)
    Interior metal frames

    Aerospace
    Aircraft skins (aluminum/titanium sheet forming)
    Engine housings (deep drawing of superalloys)
    Lightweight structural components (honeycomb structures)

    Electronics & Telecommunications Key Parts:
    5G base station enclosures (EMI shielding)
    Server chassis (ventilation hole arrays)
    Smartphone metal frames (ultra-thin forming with CNC)

    New Energy Sector Major Applications:
    EV battery casings (explosion-proof aluminum structures)
    Solar mounting systems (galvanized steel continuous stamping)
    Hydrogen tank domes (thick-plate hot spinning)
    Why Choose Us?
    20+ Years in Hydraulic Press Manufacturing – ISO/CE Certified
    Custom Solutions – Non-standard designs available
    24-Month Warranty + Lifetime Technical Support
    Global Service Network – Installation & maintenance worldwide



    Customer Success Stories

    Case 1: A Tier-1 auto supplier boosted productivity by 35% using our HX-1000 slide press, achieving 99.2% part accuracy.
    Case 2: An appliance giant reduced secondary processing by 50% with our custom dual-action hydraulic forming machine.

    FAQs

    Q1: What’s the difference between a hydraulic slide press and a mechanical press?
    Hydraulic presses offer adjustable force/speed for deep drawing, while mechanical presses suit high-speed blanking.
    Q2: What’s the lead time?
    Standard models: 45 days | Custom builds: 60-90 days (complexity-dependent).
    Q3: Do you offer machine testing?
    Yes – In-factory trials or video demonstrations available.






  • Previous:
  • Next:

  • 一辉(1)_04

       Dongguan Yihui Hydraulic Machinery Co., Ltd, is experienced in designing and manufacturing various types of hydraulic press machines and servo press, Such as cold forging press, hot forging press, powder compacting hydraulic press, heating hydraulic press, deep drawing hydraulic press, servo press and so on . The plant is established in 1999 ,covers an area of 8,000 square meters. We are strictly implement the ISO9001 , CE, and SGS,BV management standards.
    YIHUI brand presses have been exported to over 80 countries, Across five continents, in Europe, there are Germany, Italy, France, Sweden, Spain, Portugal, the United Kingdom, and so on. In the Americas, there are the USA, Brazil, Chile, Argentina, and so on. In Asia, there are Japan, South Korea, Malaysia, Indonesia, Singapore, Thailand, Vietnam, etc. In Africa, there are South Africa, Algeria, etc. Hydraulic press machine and servo press mainly applied to hardware, automotive, powder compacting,die casting, electronic, auto parts and other industries.
    We can provide total solutions, including machines, molds, product processing technology, automated production lines.

    车间拼图



    一辉(1)_06  一辉(1)_09

    3

    一辉(1)_08

    一辉(1)_06 一辉(1)_07

    YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:

    1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
    2.English and customer country local language, bilingual operation interface, easy to operate.
    3.Can save 50% – 70% electricity energy.
    4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
    (Machine without servo system, speed can not been adjusted.)
    5.Can be 3 to 5 years longer service life than the common machine.
    It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
    6.Ensure safety and easy to know error,easy to do after service.
    Because of Automatic alarm and auto troubleshooting system.
    7.Very easy to change mold, shorter time of changing mold.
    Because it have memory function,if use the original mold, do not need to adjust parameter again,
    8.Very quiet , do not have noise.
    9.Much stable than common machine.
    10.Much high precision than common machine.
