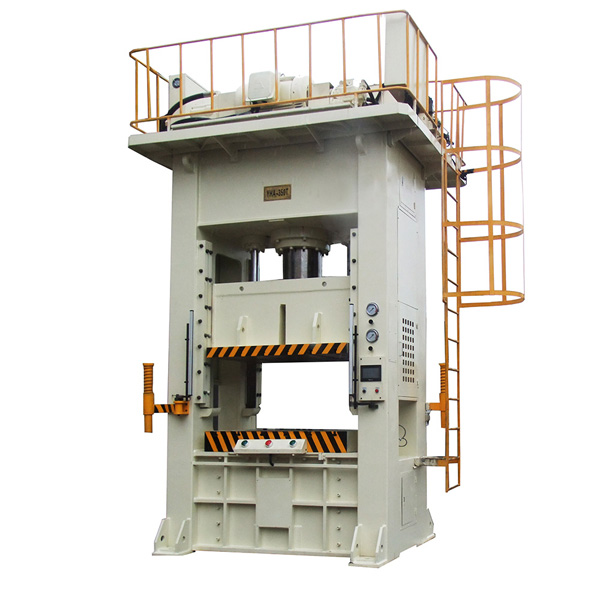

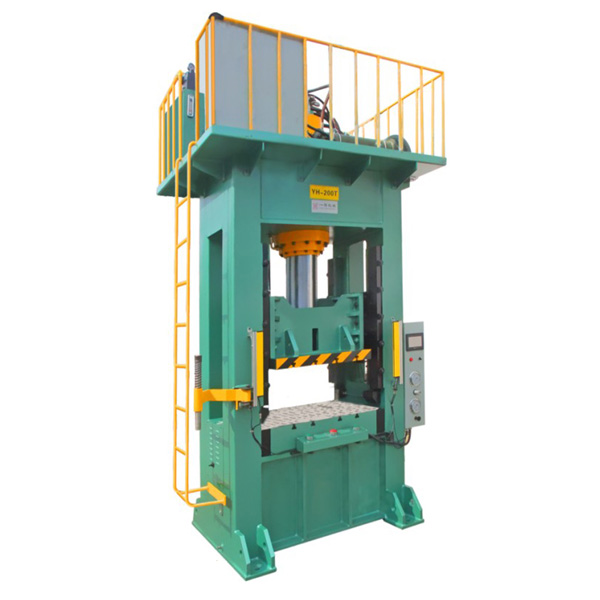

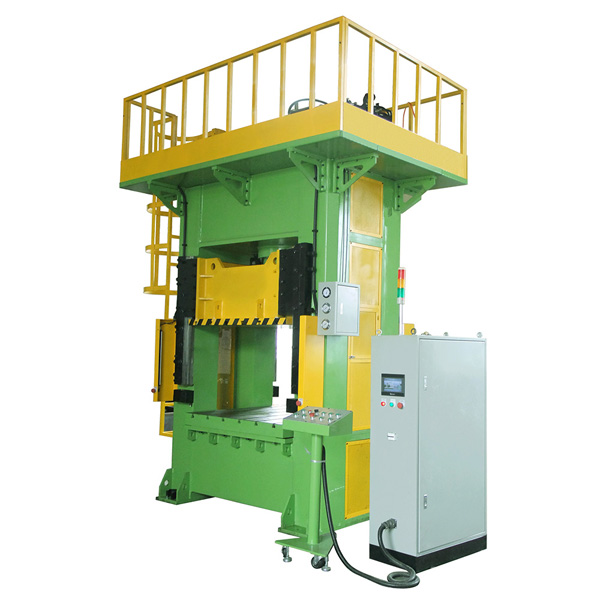

Sliding Deep Drawing Hydraulic Press
| Item | Unit | Product Specifications | |||||||
| YHL1-150TS | YHL1-200TS | YHL1-300TS | YHL1-400TS | YHL1-600TS | YHL1-800TS | YHL1-1000TS | |||
| Max.Working pressure | Mpa | 20 | 21 | 20 | 22 | 24 | 25 | 25 | |
| Main cylinder force | kN | 1000 | 1500 | 2000 | 2500 | 4000 | 5000 | 6000 | |
| Cushion cylinder force | kN | 500 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Ejection cylinder force | kN | 50 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Max.Stroke of ram | mm | 500 | 650 | 650 | 900 | 1200 | 1500 | 1500 | |
| Max.stroke of cushion cylinder | mm | 200 | 250 | 250 | 250 | 350 | 500 | 500 | |
| Max.Stroke of ejection cylinder | mm | 180 | 180 | 200 | 280 | 280 | 300 | 300 | |
| Max.Open height | mm | 650 | 850 | 950 | 1200 | 1500 | 2000 | 2000 | |
| Speed of ram | Down no load | mm/s | 300 | 300 | 300 | 300 | 270 | 280 | 270 |
| Pressing | mm/s | 15/30 | 15/30 | 13/18 | 13/18 | 13/21 | 14/25 | 14/24 | |
| Return | mm/s | 250 | 250 | 250 | 230 | 230 | 230 | 230 | |
| Effective area of working table | RL(edge) | mm | 950 | 1000 | 1200 | 1400 | 2000 | 2500 | 2500 |
| FB(edge) | mm | 720 | 850 | 1000 | 1200 | 1500 | 1500 | 1500 | |
| Motor power | kW | 16.4 | 24.5 | 31 | 31 | 49.6 | 31*2 | 49.6*2 | |
| Total weight | kg | 6500 | 7200 | 11000 | 14000 | 22000 | 25000 | 29000 | |
| Oil quantity(Approx) | L | 500 | 600 | 800 | 800 | 1000 | 1300 | 1500 | |
| Item | Unit | Product Specifications | |||||||
| YHL1-250T | YHL1-315T | YHL1-350T | YHL1-400T | YHL1-500T | YHL1-700T | YHL1-1200T | |||
| Nominal force | kN | 2500 | 3150 | 3500 | 4000 | 5000 | 7000 | 12000 | |
| Max.Working pressure | Mpa | 22 | 21 | 22 | 22 | 20 | 23 | 21 | |
| Main cylinder force | kN | 1750 | 2150 | 2500 | 2500 | 3000 | 4500 | 8000 | |
| Max.Stroke of ram | mm | 600 | 650 | 650 | 650 | 750 | 800 | 800 | |
| Max.Open height | mm | 1000 | 1000 | 1100 | 1200 | 1300 | 1400 | 1400 | |
| Cushion cylinder force | kN | 750 | 1000 | 1000 | 1500 | 2000 | 2500 | 4000 | |
| Max.stroke of cushion cylinder | mm | 250 | 300 | 300 | 300 | 350 | 350 | 350 | |
| Ejection cylinder force | kN | 30 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max.Stroke of ejection cylinder | mm | 230 | 280 | 280 | 280 | 320 | 320 | 320 | |
| Speed of ram | Down no load | mm/s | 320 | 360 | 380 | 300 | 290 | 200 | 200 |
| Pressing | mm/s | 20/50 | 20/50 | 35/55 | 15/30 | 15/30 | 13/20 | 13/20 | |
| Return | mm/s | 320 | 340 | 300 | 280 | 290 | 190 | 190 | |
| Effective area of working table | RL(edge) | mm | 800 | 800 | 950 | 1000 | 1200 | 1400 | 1600 |
| FB(edge) | mm | 900 | 900 | 1100 | 1200 | 1400 | 1600 | 1600 | |
| Overall dimension | L.R | mm | 2250 | 2250 | 2400 | 2550 | 2800 | 3100 | 3300 |
| F.B | mm | 1910 | 1910 | 1900 | 1900 | 2000 | 2100 | 2100 | |
| H | mm | 3890 | 4000 | 4150 | 4580 | 4750 | 5150 | 5300 | |
| Motor power | kW | 18.5 | 22 | 22 | 30 | 37 | 45 | 75 | |
| Total weight(Approx) | kg | 9200 | 10500 | 11000 | 12200 | 20900 | 33000 | 36000 | |
| Oil quantity(Approx) | L | 700 | 700 | 800 | 900 | 900 | 1200 | 1400 | |
Salient features:
High operational accuracy
Easy installation
Robust construction
Fully hydraulic powered cushions, knockouts, ejectors and blankholders are available
Most cost-effective
High speed slide approach
You can avail the press as per customized requirements
Advantages of our machine:
l With Servo system
YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:
1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2. English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% - 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
it means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
l We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.
l The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.
l Our factory have specialized in independent development and producing hydraulic press for over 20 years. So the product is stable and high quality.
l Machine body, we use bending structure , much stronger than the common welding structure .
l Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
l We take integrated oil manifold block, much easier to check machine and repair machine.
Quality Control
All of the hydraulic presses in our factory have passed CE,ISO,SGS,BV certificates.
Technical Features
1. The machine frame is wholly welded, processed with artificial aging and polishing against rust. Has strong rigidity and small deformation.
2. Production efficiency is high with fast falling speed of the moving sliding bolster.
3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4. Has large worktable and die-filling space. Precision is high with eight-side sliding rail oriented.
5. Operation is safer with lubricating system continuously recurrently cooled by fixed-point and quantitative thin oil.
Applicable Scope

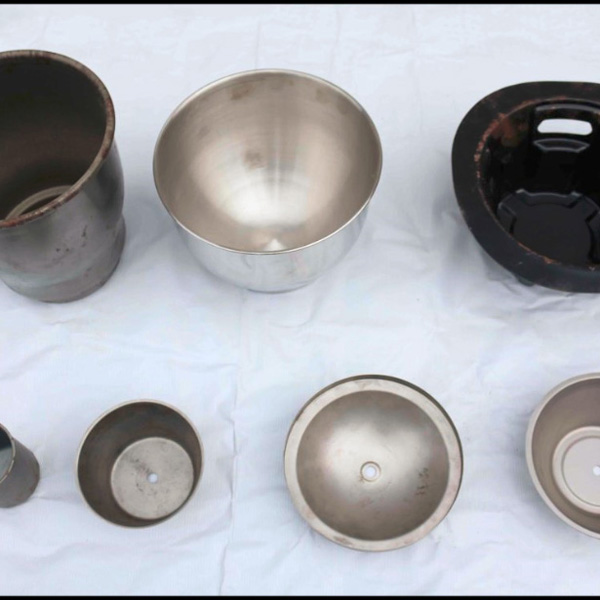

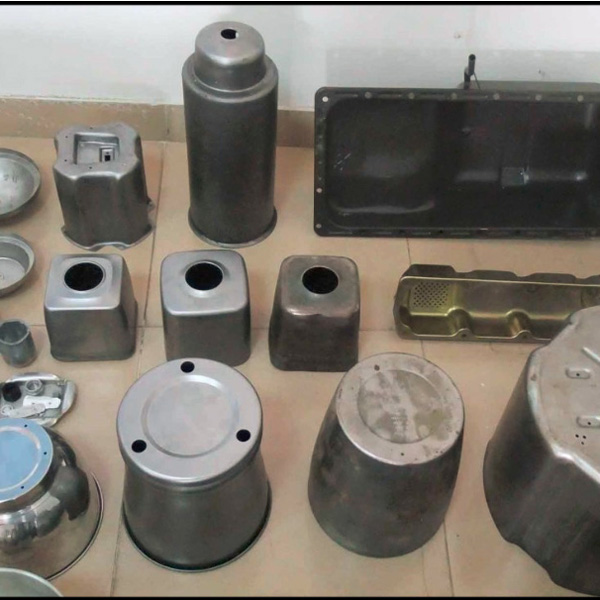

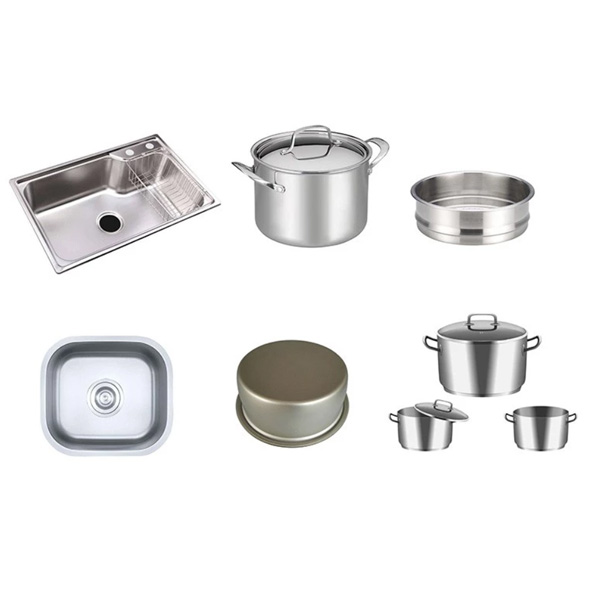

1. Deep drawing and forming of auto parts, household appliance parts and kitchenware, etc.
2. Especially suitable for stretching and forming of special-shaped products.
3. Stamping, deep drawing, bending, flanging, forming and other pressing process for metal and nonmetal parts.
Why so many famous brand company cooperate with us ?
1.Our factory have specialized in independent development and producing hydraulic press for 19 years. So the product is stable and high quality.
2. Machine body, we use bending structure , much stronger than the common welding structure .
3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
4. We take integrated oil manifold block, much easier to check machine and repair machine.
5.The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.
