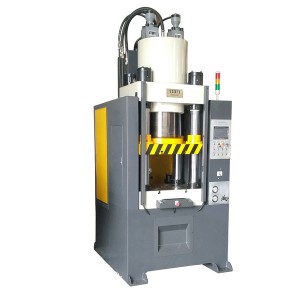

Ordinary Discount China 11/5000 SMC Water Tank Plate Forming Hydraulic Press

Short Description:

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 500 Piece/Pieces per year

Send email to us

Product Detail

Our Customers

Customers Feedback

Exhibition

Product Tags

Dedicated to strict top quality command and considerate purchaser support, our experienced staff customers are always available to discuss your necessities and be certain full client gratification for Ordinary Discount China 11/5000 SMC Water Tank Plate Forming Hydraulic Press, Our goods are widely used in a lot of industrial fields. Our Firm Solutions Division in fantastic faith for that purpose on the excellent of survival. All for customer services.
Dedicated to strict top quality command and considerate purchaser support, our experienced staff customers are always available to discuss your necessities and be certain full client gratification for China Hydraulic Press, Hydraulic Press Machine, Our company now has many department, and there have more than 20 employees in our company. We set up sales shop, show room, and product warehouse. In the meantime, we registered our own brand. We now have tightened inspection for quality of product.

Item		Unit	Product Specifications
Item		Unit	YHA3-100TS	YHA3-150TS	YHA3-200TS	YHA3-300TS	YHA3-500TS
Max.Working pressure		Mpa	21	21	20	24	25
Main cylinder Force		kN	1000	1500	2000	3000	5000
Max.Stroke of ram		mm	350	350	350	350	350
Max.Open height		mm	550	550	600	700	900
Lower cyinder nominal force		kN	150	200	300	300	400
Max.stroke of lower cylinder		mm	150	150	150	200	200
Upper ejection cylinder force		kN
Stroke of upper ejection cylinder		mm
Speed of ram	Down no load	mm/s	260	250	270	260	250
	Pressing	mm/s	10/25	10/20	10/15	8/15	8/15
	Return	mm/s	250	240	240	230	230
Effective area of working table	RL(column inside)	mm	550	550	550	550	650
Effective area of working table	FB(edge)	mm	600	600	600	650	700
Overall dimension	L.R	mm	1550	1760	1830	2150	2250
	F.B	mm	1260	1260	1360	1550	1850
	H	mm	2580	2650	2750	3020	3550
Motor power		kW	7.5	7.5	11.6	16.4	24.5
Total weight(Approx)		kg	4500	3400	3800	4500	7800
Oil quantity(Approx)		L	350	350	400	450	500

Unit	Product Specifications
Unit	YHA3-650TS	YHA3-800TS	YHA3-1000TS	YHA3-1500TS	YHA3-2000TS	YHA3-3000TS
Mpa	25	24	24	24	25	24/40
kN	6500	8000	10000	15000	20000	30000
mm	500	500	500	500	500	500
mm	1000	1000	1200	1400	1500	1500
kN	500	500	500	600	1000	1000
mm	200	200	200	200	200	200


mm/s	210	200	190	190	190	190
mm/s	8/16	8/16	8/16	7/9	6/8	4/6
mm/s	200	190	180	180	180	180
mm	750	850	1000	1200	1500	1500
mm	800	950	1060	1400	1500	1500
mm	2370	2550	2950	3500	3900	4200
mm	1800	1850	2200	2400	2600	2900
mm	3700	3950	4100	5250	5650	5850
kW	31	31	49.6	31*2	49.6*2	49.6*3
kg	11500	13500	21000	25000	33000	42000
L	800	800	1000	1300	1500	1800

Advantages of our machine:

l With Servo system

YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:

1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.

2. English and customer country local language, bilingual operation interface, easy to operate.

3.Can save 50% – 70% electricity energy.

4.Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.)

5.Can be 3 to 5 years longer service life than the common machine.

it means,if common machine can service for 10 years, then machine with servo, can use 15 years.

6.Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.

7.Very easy to change mold, shorter time of changing mold.

Because it have memory function,if use the original mold, do not need to adjust parameter again,

8.Very quiet , do not have noise.

9.Much stable than common machine.

10.Much high precision than common machine.

l We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.

l The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.

l Our factory have specialized in independent development and producing hydraulic press for over 20 years. So the product is stable and high quality.

l Machine body, we use bending structure , much stronger than the common welding structure .

l Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

l We take integrated oil manifold block, much easier to check machine and repair machine.

Quality Control

All of the hydraulic presses in our factory have passed CE,ISO,SGS,BV certificates.

Technical Features

1. Using Taiwan advanced hydraulic system, more steady, safer and more reliable.

2. Pressure, stroke and pressure keeping can be adjusted according to processing requirement.

3. Four columns are made of high-strength alloy steel with hard chrome plated surface and good abrasion resistance.

4. The moving bolster and worktable are equipped with optional ejecting cylinder, which meets different ejecting requirements of different products.

5. Digital control is achieved with PLC programming circuit design and touch panel operating system.

Applicable Scope

1. Cold extrusion molding and stamping for auto parts, LED heat sink and hardware tools, etc.

2. Shallow stretching and molding for metal and nonmetal parts.

High Speed Hydraulic Press YH-FAST System

Extruding Height Over 50MM

Fast Falling

From Fast to Slow Speed

Accumulator Release

Cylinder automatically switches pump for pressurizing & shaping.

Traditional hydraulic oil system is powered by motor and pump. When the tonnage is confirmed, the faster pressing speed it is, the more motor power and pump flow are required. By analyzing the required oil flow each running step needs, we storage the additional energy generated during slow pressing via electromagnetic valves to the accumulator. And during fast pressing, signal will be transferred to the electromagnetic to start the accumulator. Then additional energy will be released to supplement the fast pressing. This is achieved by adding multiple sets of energy accumulators. Therefore we improve the pressing speed and production efficiency.

Improve pressurizing speed of hydraulic press.

Previous: Good User Reputation for China Powder Compacting Servo Hyraulic Press Machine 50 Ton to 1500 Ton

Next: Special Design for China Deep Drawing 300ton Cold/Hot Forging Hydraulic Press Machine 100

Why so many famous brand company cooperate with us ?

1.Our factory have specialized in independent development and producing hydraulic press for 19 years. So the product is stable and high quality.

2. Machine body, we use bending structure , much stronger than the common welding structure .

3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

4. We take integrated oil manifold block, much easier to check machine and repair machine.

5.The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.

6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.

Certificate：

YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:

1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
