Good User Reputation for China Powder Compacting Servo Hyraulic Press Machine 50 Ton to 1500 Ton

Short Description:

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 500 Piece/Pieces per year

Send email to us

Product Detail

Our Customers

Customers Feedback

Exhibition

Product Tags

Good quality comes to start with; service is foremost; organization is cooperation” is our enterprise philosophy which is regularly observed and pursued by our firm for Good User Reputation for China Powder Compacting Servo Hyraulic Press Machine 50 Ton to 1500 Ton, Currently, we’ve been seeking ahead to even bigger cooperation with overseas shoppers depending on mutual added benefits. Please sense cost-free to contact us for additional specifics.
Good quality comes to start with; service is foremost; organization is cooperation” is our enterprise philosophy which is regularly observed and pursued by our firm for Ceramic Powder Press, China Powder Compact Machine, In order to meet more market demands and long-term development, a 150, 000-square-meter new factory is under construction, which might be put into use in 2014. Then, we shall own a large capacity of producing. Of course, we’ll continue improving the service system to meet the requirements of customers, bringing health, happiness and beauty to everyone.

Item		Unit	Product Specifications
Item		Unit	YHB2-150T	YHB2-200T	YHB2-250	YHB2-350T	YHB2-500T
Nominal Force		kN	1500	2000	2500	3500	5000
Max.Working Pressure		Mpa	20	21	22	22	20
Master Cylinder Nominal Force		kN	1000	1500	1750	2500	3000
Max.Stroke of Ram		mm	550	550	600	650	750
Daylight (Max.Open Height)		mm	850	900	1000	1100	1300
Lower Cylinder Nominal Force		kN	500	500	750	1000	2000
Stroke of Lower Cylinder		mm	250	250	250	300	350
Upper Ejection Cylinder Force		kN	30	30	30	50	50
Stroke of Upper Ejection Cylinder		mm	230	230	230	280	320
Speed of Ram	Down No Load	mm/s	350	380	320	380	290
	Pressing	mm/s	2～40	2～40	2～40	2～40	2～40
	Return	mm/s	340	360	320	300	290
Effective Area of Working Table	RL(Inside Column)	mm	620	700	800	950	1200
Effective Area of Working Table	FB(Edge)	mm	750	850	900	1100	1400
Overall Dimension	L.R	mm	1940	2140	1650	2430	2780
	F.B	mm	1380	1820	1890	2000	2400
	H	mm	3250	3440	3890	4250	4750
The Distance Between the Working Table and the Ground		mm	1120	1120	1300	1340	1700
Servo Motor Power		kW	16.4	24.5	24.5	31	49.6
Total Weight(Approx)		Ton	5.1	6.3	9.2	11	20.9
Oil Quantity(Approx)		L	500	650	700	800	900

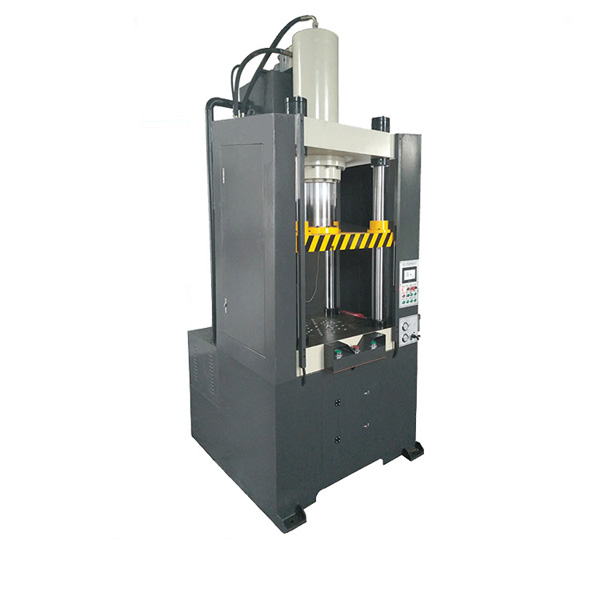

To cater to the variegated demands of our valued patrons, Dongguan Yihui engaged in manufacturing and exporting Powder Compacting Press.The machine is with PLC and with touch screen and with servo motor , with main cylinder and lower cylinder and and cushion cylinder and ejection cylinder. Offered press consumes very less energy and its very easy to use. Offered Powder Compacting Press can be availed from us, at most affordable prices.

Applications of Hydraulic Powder Compacting Press are:

l Producing the Powder Metallurgy Parts.

l Producing the cosmetic ,pharmaceutical industries parts

l Producing the Iron-Base & Non-Ferrous- Base Sintered Structural Parts

l Producing the Ceramic & Cermet Parts

l Producing the Carbon & Carbide Parts

l Producing the Magnetic & Self – Lubricating Parts

l Producing the Stainless & Alloy Parts

l Producing parts for Automobile & Machines

l Producing parts for Aircraft & Aerospace

l Producing parts for Atomic Reactors

Product Features:

l Easy installation

l No maintaining cost

l Flawless performance

l Longer working life

Advantages:

l With movable intermediate plate.

l With automatic feeding shoes.

l Full automatically

Advantages of our machine:

l With Servo system

YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:

1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.

2. English and customer country local language, bilingual operation interface, easy to operate.

3.Can save 50% – 70% electricity energy.

4.Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.)

5.Can be 3 to 5 years longer service life than the common machine.

it means,if common machine can service for 10 years, then machine with servo, can use 15 years.

6.Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.

7.Very easy to change mold, shorter time of changing mold.

Because it have memory function,if use the original mold, do not need to adjust parameter again,

8.Very quiet , do not have noise.

9.Much stable than common machine.

10.Much high precision than common machine.

l We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.

l The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.

l Our factory have specialized in independent development and producing hydraulic press for over 20 years. So the product is stable and high quality.

l Machine body, we use bending structure , much stronger than the common welding structure .

l Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

l We take integrated oil manifold block, much easier to check machine and repair machine.

Quality Control

All of the hydraulic presses in our factory have passed CE,ISO,SGS,BV certificates.

Technical Features

Four columns are made of high-strength quality round steel with surface hardened via high-frequency treatment, and electroplated after grinding. Good abrasion resistance is guaranteed.
Production efficiency is high with fast falling speed of the moving bolster.

Pressure, stroke and pressurizing time can be adjusted according to processing requirement.

Designed with PLC programming circuit and touch panel operating system. Easy and convenient to operate.

Optional configuration: protective shielf, LED lighting and infrared grating, etc.

Applicable Scope

Hydro forming for kettle, tableware, silencing pipe, decorative tube, special-shaped tee and special-shaped curved surface, etc.
Applied to shallow stretching, molding, punching, shaping and other pressing process for metal and nonmetal parts.

Previous: 2020 YIHUI Hot forging hydraulic press

Next: Ordinary Discount China 11/5000 SMC Water Tank Plate Forming Hydraulic Press

Why so many famous brand company cooperate with us ?

1.Our factory have specialized in independent development and producing hydraulic press for 19 years. So the product is stable and high quality.

2. Machine body, we use bending structure , much stronger than the common welding structure .

3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.

4. We take integrated oil manifold block, much easier to check machine and repair machine.

5.The main components are imported from Japan and Taiwan . So the quality is near the Japan production, but the unit price is lower than Japan production.

6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.

Certificate：

YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:

1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
